產品描述
WS7010AF is single channel high-side drivers with currentsense analog feedback for automotive applications, the devicesare designed to drive 12 V automotive qrounded loads througra 3 V and 5 V.
WS7010AF integrates advanced protective functions such asload current limitation, overload active management by powellimitation and overtemperature shutdown.
A dedicated multifunction multiplexed analog output pindelivers sophisticated diagnostic functions including highprecision proportional load current sense,in addition to thedetection of overload and short circuit to ground, short to Vcand OFF-state open-load.
A sense enable pin allows OFF-state diagnosis to be disableddurina the module low power mode as well as external senseresistor sharing among similar devices.

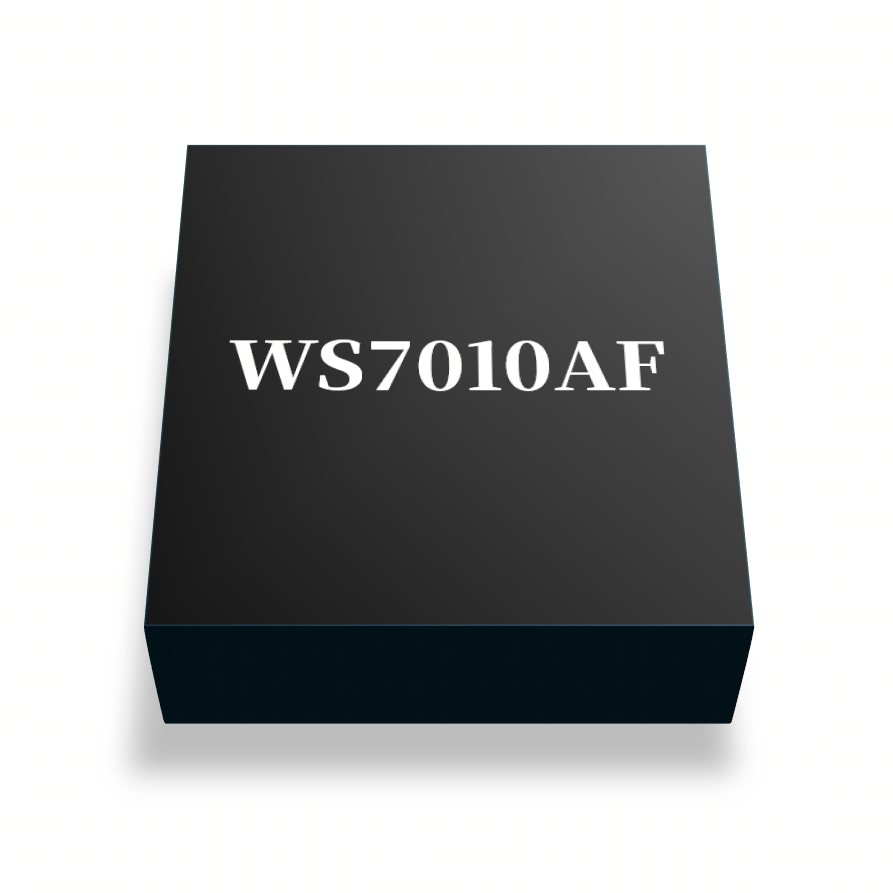

WS7010AF is available in DFN5x6-14L package.
主要特點
Operating voltage range: 4.5V to 28V
Load current limitation
Output short-circuit protection
Standby current <2.0uA
On-state resistance Typ=12mΩ
Thermal shutdown indication
OFF-state open-load detection
Overvoltage clamp
Undervoltage protection
Multiplexed analog feedback of load current with high precision proportional current mirror
RoHS compliant and lead free
AEC-Q100 qualified
規格書
| 文檔名稱 | 文檔描述 | 下載 |
|---|---|---|
| WS7010AF | 4332KB |
