產品描述
WS7020AF is single channel high-side drivers with currentsense analog feedback for automotive applications, the devicesare designed to drive 12 V automotive grounded loads througha 3 V and 5 V.
WS7020AF integrates advanced protective functions such asload current limitation, overoad active management by powerlimitation and overtemperature shutdown.
A dedicated multifunction multiplexed analog output pindelivers sophisticated diagnostic functions including highprecision proportional load current sense, in addition to thedetection of overload and short circuit to ground, short to Vecand OFF-state open-load.
A sense enable pin allows OFF-state diagnosis to be disabledduring the module low power mode as well as extemal senseresistor sharing among similar devices.

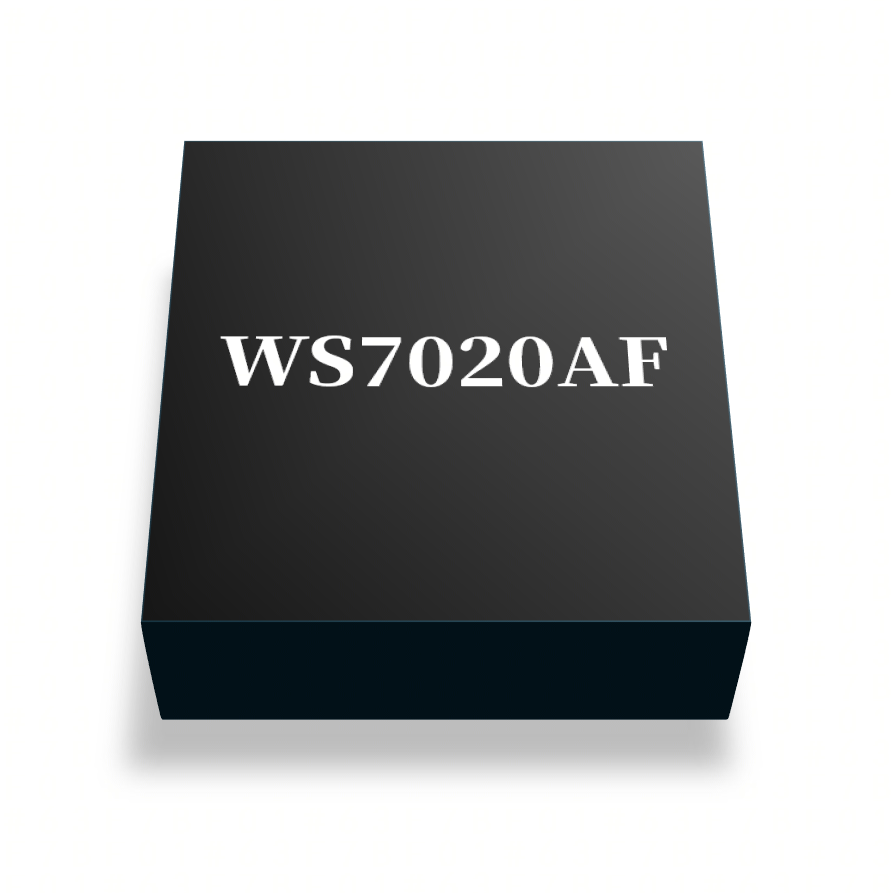

WS7020AF is available in DFN5x6-14L package.
主要特點
Operating voltage range: 4.5V to 28v
Load current limitation
Output short-circuit protection
Standby current <1.0μA
On-state resistance Typ=23mΩ
Thermal shutdown indication
OFF-state open-load detection
Overvoltage clamp
Undervoltage protection
Multiplexed analog feedback of load current with high precision proportional current mirror
RoHS compliant and lead free
AEC-Q100 qualified
